Expand your machinery and benefit from a fully automated system for end trimming or ripping. With an upstream scanner from the series 1000 for your cross-cut saw, you increase your wood yield while maintaining or even improving the quality of the boards. You can also operate the WEINIG scanners with saws from other manufacturers.
We already rely on OptiCore AI in our entry-level scanners. This software is based on deep learning and has been trained with extensive, carefully classified data. The software recognizes wood features with extreme precision and processes image information similarly to the human brain. Thanks to continuous optimization, it delivers reliable, repeatable results—with minimal adjustment effort.
- Do you want a higher wood yield or more good parts?
Benefit from the series 1000 with significantly improved detection accuracy and thus better results than with any manual marking.
- Do you need or want to reduce your operating costs?
The time-consuming inspection and manual marking by employees is completely eliminated—the personnel effort in this area is noticeably reduced.
- Do you have a high product variety?
From now on, manufacture numerous qualities and product variants in parallel and without conversion effort in a consistently fast and efficient process.
DEFECT DETECTION USING AI TECHNOLOGY
In addition to the sensors, the software plays the most important role in the end trimming or ripping optimization of surfaces using scanner technology.
OptiCore / OptiCore AI is an intelligent image processing software that uses deep learning for the recognition of wood features. In total, well over 500,000 defects have been analyzed and can be processed by the WEINIG scanners like a human brain. This allows us to provide our customers with an optimized model for each wood type and configuration (optimization goal) for their operation.
3D sensors are standard. They guarantee good resolution and appealing results. Continuous development of this industrial sensor system ensures that performance is constantly improved.
This technology is used for the detection of defects such as knots or pith tubes, etc. Thanks to a sophisticated laser system, 3D surface defects such as holes and wane are also reliably detected.
All sensors are protected by a dustproof housing.
Standard scanners face challenges in detecting color defects. These issues are effectively addressed and eliminated by the color camera. The reliable detection of color defects contributes to the excellent performance of the series 1000 (product name before LIGNA 2025: EasyScan Lite). This is guaranteed by high resolution in both longitudinal and transverse directions. Defects such as blue stain are detected, measured, and optimized with the highest accuracy.

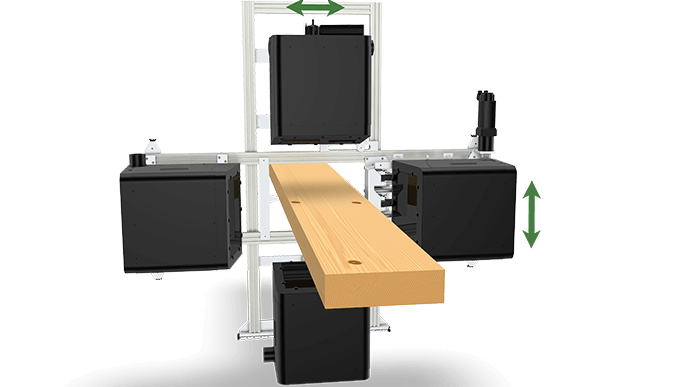

A reduction in setup and maintenance times simultaneously means an increase in production time and throughput. Therefore, automatic camera adjustment per stack/batch is standard in the scanner series 1000, 2000, 3000, and 4000. You can enter the values manually here or set up automation. Adjustment is based on cross-section.
Manage your production optimally with OptiCore. The software enables a very precise definition of your products and the required qualities. The sensors detect each individual piece of wood and the optimization software calculates the maximum possible yield, taking your quality requirements into account.
Both your product details and qualities are stored in the database and can be quickly reselected as needed via "drag-and-drop".
Thanks to the simple and logical user interface, OptiCore can be quickly operated by any employee.
BAUREIHEN IM VERGLEICH
Technical data / functions
- SOLID SCAN 1000
- SOLID SCAN 2000
- SOLID SCAN 3000
- SOLID SCAN 4000
- Number of saws
- 1
- 1-2
- 1-2
- 1-4
- Softwood / hardwood
- yes/selected wood types
- yes/yes
- yes/yes
- Dry wood / wet wood
- yes/no
- yes/on request
- yes/yes
- yes/yes
- Dual Scatter
- -
- -
- optional
- yes
- Random widths
- -
- optional
- -
- optional
- ACM / diagonal crack detection
- -
- -
- yes
- yes
- Skip / unplaned areas
- -
- -
- -
- optional
- X-ray
- -
- -
- -
- optional
- Strength sorting
- with SOLID SCAN E MOD (optional)
- with SOLID SCAN E MOD (optional)
- with SOLID SCAN E MOD (optional)
- optional or with SOLID SCAN E MOD (optional)
Detection performance
- SOLID SCAN 1000
- SOLID SCAN 2000
- SOLID SCAN 3000
- SOLID SCAN 4000
- Core recognition of larger defects such as knots, wane, cracks, blue stain, and much more
- yes
- yes
- yes
- yes
- Advanced recognition of defects such as knots, wane, cracks, blue stain, red heart, sapwood, etc.
- -
- yes
- yes
- yes
- Pro recognition of the above-mentioned defects plus diagonal cracks, etc.
- -
- -
- yes
- yes
- Ultra recognition of the above-mentioned defects plus local undersize, unplaned areas, density, strength, etc.
- -
- -
- -
- yes
