The SOLID SCAN T 5000 series impresses with very high scanning speed, precise defect detection, and robust performance, making it ideal for automatic sorting or ripping in demanding production lines with high output.
Both dry and wet boards or sawn timber can be reliably detected in cross-feed, enabling even higher speeds than in longitudinal feed.
The series models reliably detect black knots, holes, bark, wane, as well as blue stain discolorations in various wood types. Strength grading according to EN 14081 is also possible. Here, the scanner system provides standard-compliant detection of all relevant wood features – precise, reproducible, and process-safe.
- Do you want a higher wood yield or more good parts?
Thanks to the sensor package, the 5000 series with AI technology achieves significantly better results than any manual marking and surpasses conventional scanner systems in its performance.
- Do you need or want to reduce your operating costs?
The labor-intensive manual marking is completely eliminated, and wood defects are still reliably and accurately ripped or sorted. This noticeably reduces personnel requirements while maintaining consistently high or increasing product quality.
- Do you need maximum flexibility in production?
You can manufacture numerous qualities and product variants in parallel, without conversion effort and at very high speed.
- Do you want to achieve peak productivity?
With a WEINIG scanner system of this series, you achieve a very fast and efficient throughput with precise automatic defect detection at the same time.
Unlike our standard sensors in longitudinal feed, special sensors for cross-feed were used in the 5000 series, which have very good resolution and performance. With the fastest speed available on the market, they guarantee the best results. Continuous development of this industrial sensor system ensures that performance is constantly increased.
The sensors enable the detection of defects such as knots, pith tubes, holes, or wane.
All sensors are protected by a dustproof housing.
Standard scanners face problems when detecting color defects. These problems are effectively addressed and eliminated by the built-in color sensors. The reliable detection of color defects contributes to the excellent performance of the SOLID SCAN 5000 series. This is guaranteed by high resolution in both longitudinal and cross directions. Defects such as blue stain are detected, measured, and optimized with the highest accuracy.
An important part of optimizing yield and value creation is the precise cutting position. The "Dual Scatter" system, consisting of a line laser and a point laser, enables this accuracy. While the line laser mainly detects knots, cracks, and resin pockets, the point laser improves detection especially on rough surfaces. The cutting position is significantly improved by the angle and size of the points.
The "Dual Scatter" system is available for hardwood and softwood.
Unlike our standard sensors in longitudinal feed, special sensors for cross-feed were used in the 5000 series, which have very good resolution and performance. With the fastest speed available on the market, they guarantee the best results. Continuous development of this industrial sensor system ensures that performance is constantly increased.
The sensors enable the detection of defects such as knots, pith tubes, holes, or wane.
All sensors are protected by a dustproof housing.

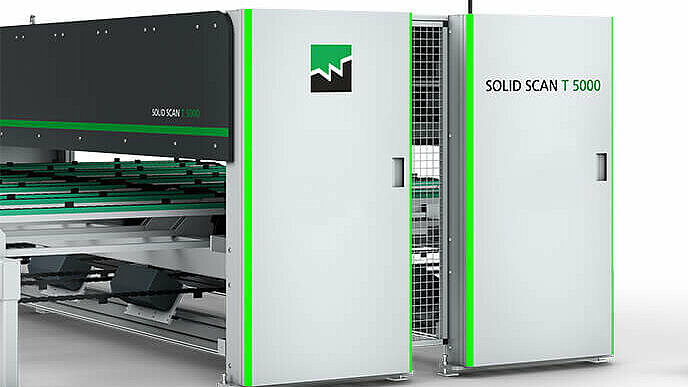

In addition to a single frame, we also offer a double frame version. This enables seamless imaging of the underside – completely without blind spots. Disruptions caused by mechanization are avoided, ensuring precise feature analysis up to the end of the board. For simpler requirements, a single frame variant is also available.

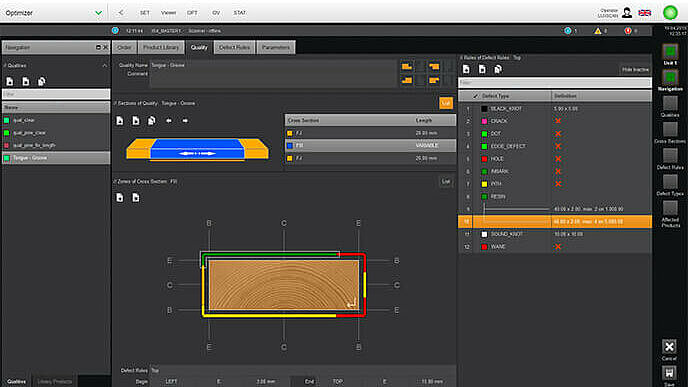

Manage your production optimally with OptiCore. The software enables a very precise definition of your products and the required qualities. The sensors capture every single piece of wood and the optimization software calculates the maximum possible yield, taking your quality requirements into account.
Both your product details and qualities are stored in the database and can be quickly selected again as needed via "drag-and-drop".
Thanks to the simple and logical user interface, OptiCore can be quickly operated by any employee.
